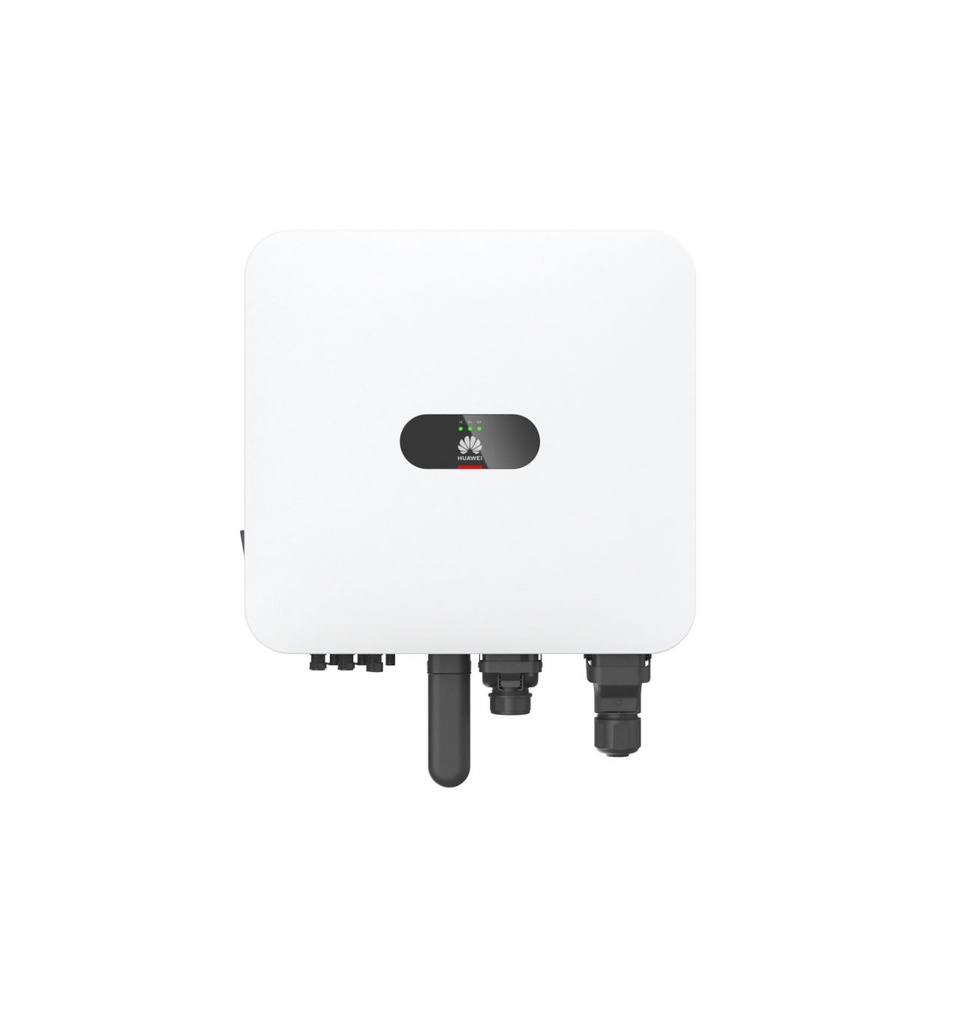

SUN5000-12KTL-MAP0 is a Huawei 12 kW three-phase hybrid inverter designed for residential and commercial applications, offering advanced safety and energy optimization features.

Oto szczegółowy opis techniczny i funkcjonalny urządzenia:

Key specifications:

• Model: Huawei SUN5000-12KTL-MAP0
• Type: Three-phase hybrid inverter
• Rated power: 12 kW
• DC input voltage range: up to 1000 V
• Maximum input current: up to 16 A per string
• Number of MPPTs: 2 independent paths
• Maximum efficiency: up to 98,5%
• Battery compatibility: connectable to up to 42 kWh of Huawei batteries

Compatibility and installation

• Module-level optimization: increases system efficiency by up to 30%
• Requires the use of Huawei optimizers
• Compatible with most photovoltaic panels
• No additional wiring required for optimizers

Safety features

• AFCI (Arc Fault Circuit Interruption): detection and prevention of electric arcs
• RSD (Rapid Shutdown): rapid system shutdown in the event of a fault
• Protection rating: IP65 – weather resistance

Communication and monitoring

• Integrated monitoring: via the FusionSolar app
• Interfaces: RS485, USB, WLAN (optional) 4G
• Remote management and software update capabilities
